DRS10 Drainage Protection 10mm x 2mw x 20lm (per roll)

$1,143.76

Prefabricated Drainage Composite

10mm x 2mw x 20lm

  • Effective drainage & waterproof membrane protection
  • Dimples capture and transport high water volumes
  • Resists high loads from earth form work



Please note: Additional shipping charges will be applied due to being an oversized item

Out of stock

SKU: 32142 Category:

Description

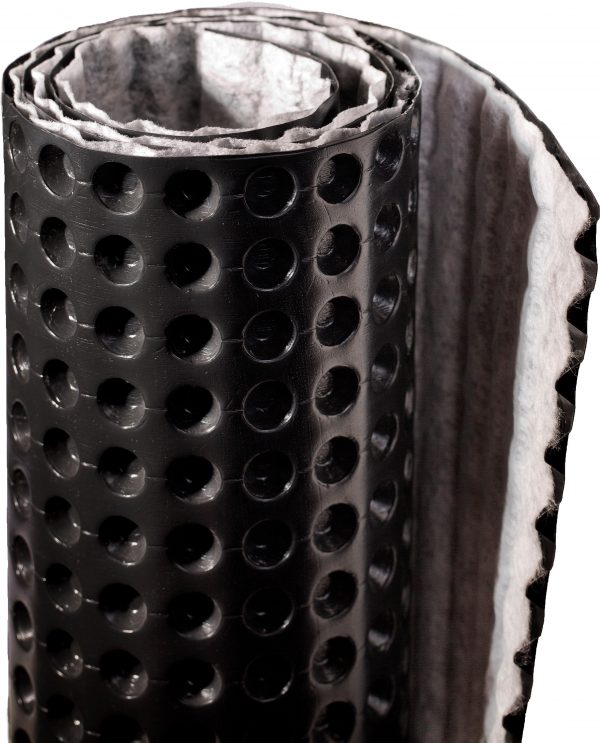

ARDEX DRS 10 GC is a dimpled plastic sheet that provides effective drainage and waterproof membrane protection on foundation walls and other underground structures. The integrated non-woven geotextile covering the dimples prevents soil particles blocking the drainage sheet, creates an air gap for reliable ventilation and allows inflow and with its dimple structure effectively captures and transports high water volumes and resists high loads from earth and formwork.

Typical Uses:
ARDEX DRS 10 GC performs a multi-faceted role by providing protection for waterproofing systems and managing sub-surface water around building foundations. Soil backfill is retained by a filter fabric while allowing water to pass into the drainage core providing hydrostatic relief. Collected water is then conveyed to a proper collection system.

Application:

  • Installed either vertically or horizontally
  • Held in place by either taping, nailing, gluing or simply overhanging over the wall while backfilling takes place
  • Installed with the geotextile facing the backfill
  • Joined by simply butting edge to edge and overlapping the geotextile overhang and securing with reinforced canvas tape.
  • Backfill with free draining fill taking care not to disturb or damage the ARDEX DRS 10 GC



ARDEX DRS 10 GC

Additional information

Weight 20 kg
